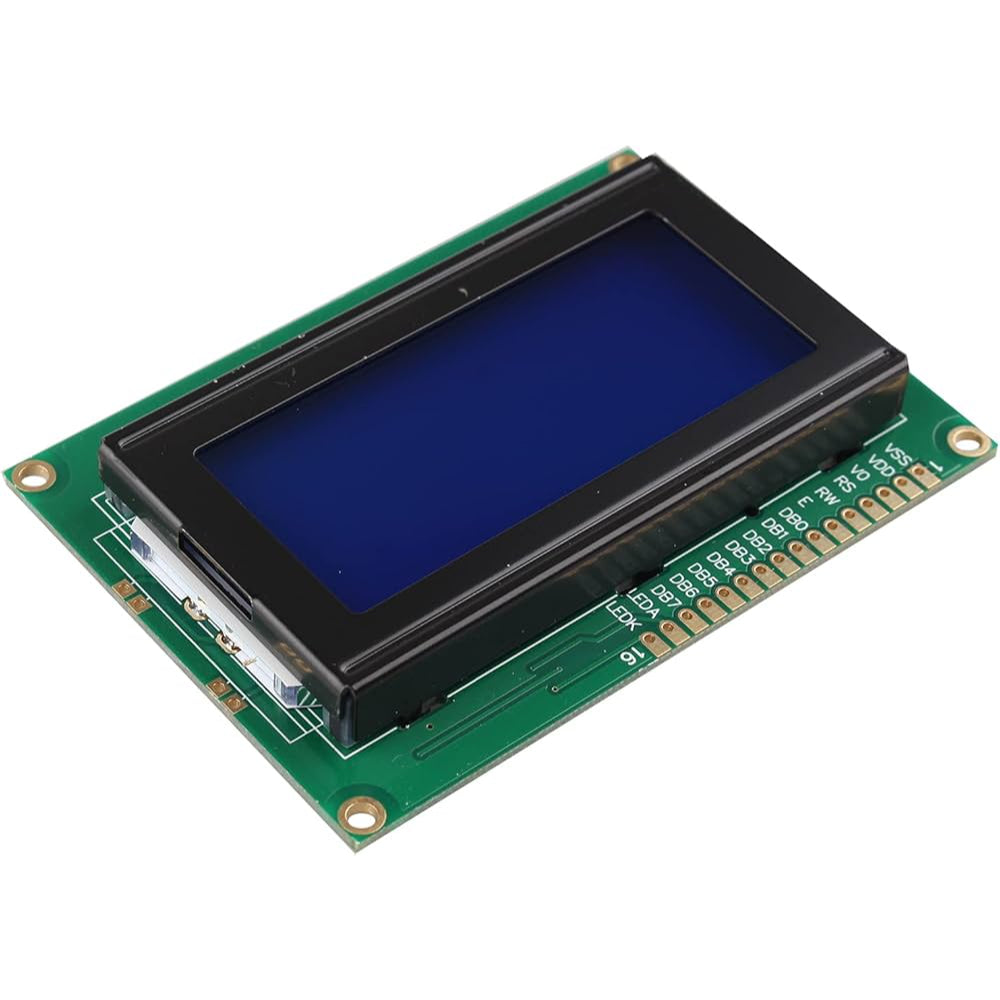

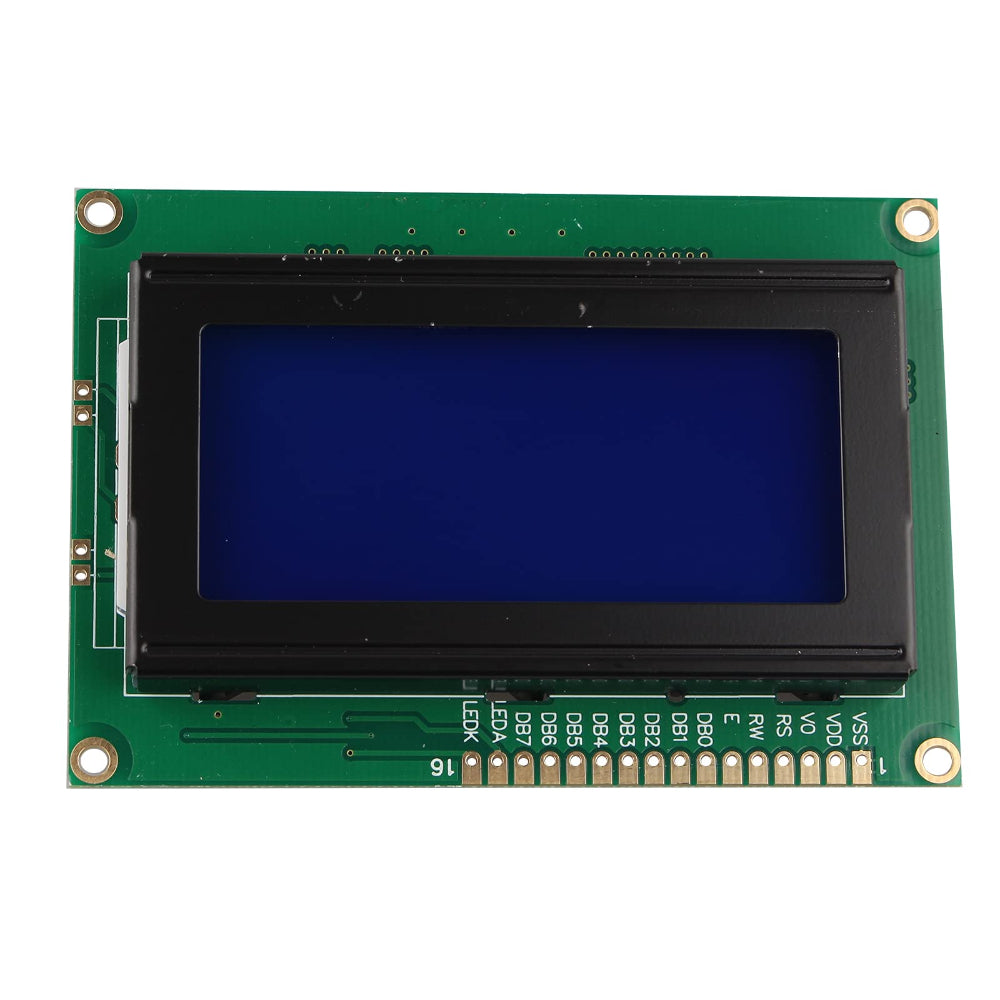

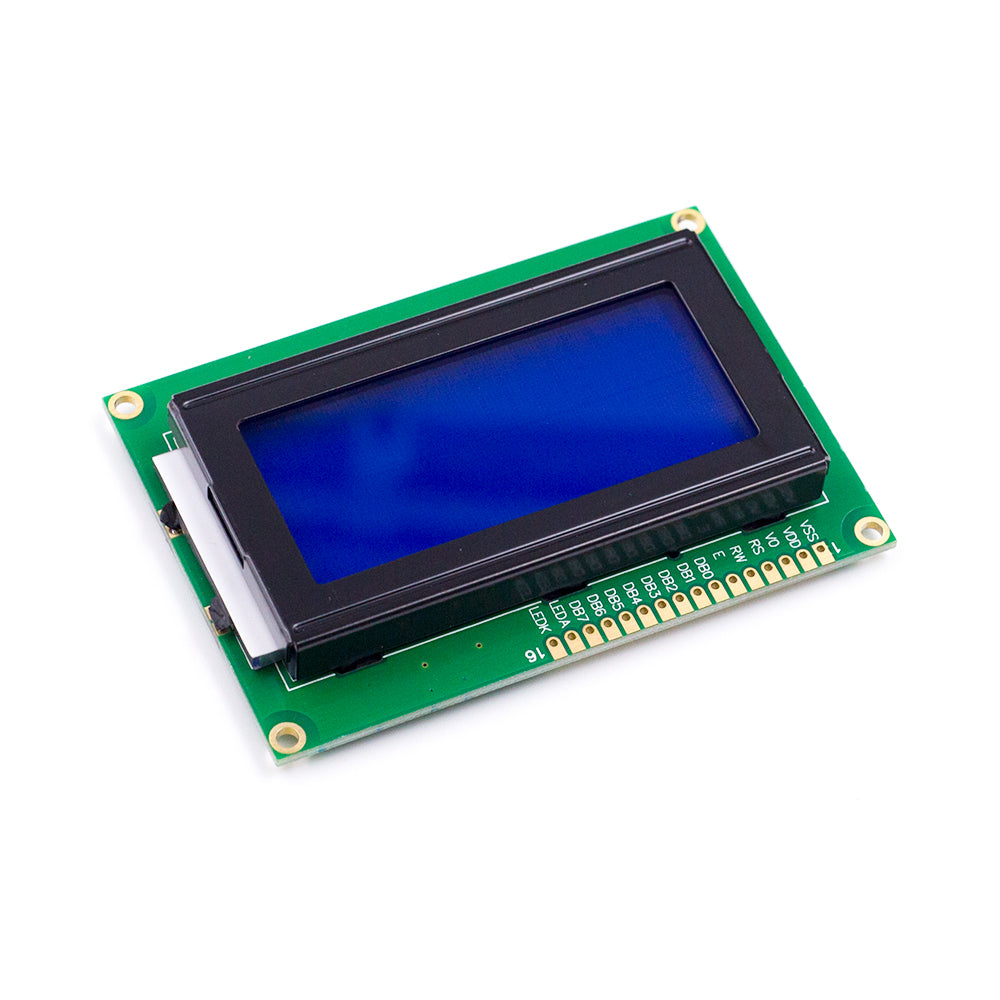

Display Format: 16×4 Character
Interface: 6800 4-bit Parallel , 6800 8-bit Parallel
IC or Equivalent: AIP31066 , HD44780, KS0066 , SPLC780 , ST7066
Appearance: White on Blue
Connection: Pin Header
Outline Dimension: 87.0(W)x60.0(H)x12.9(T)mm
Visual Area: 62.00×27.20mm
Active Area: 56.21×20.81mm
Dot (Pixel) Size: 0.56×0.56mm
Dot (Pixel) Pitch: 0.60×0.60mm
IC Package: COB
Display Type: STN-LCD Blue
Viewing Direction: 6:00
Backlight Color: White Color
Backlight Current (Typ): 45mA
Power Supply(Typ): 3.3V, 5V
Supply Current for LCM(Max): 1500uA
Operating Temperature: -20℃~70℃
Storage Temperature: -30℃~80℃
